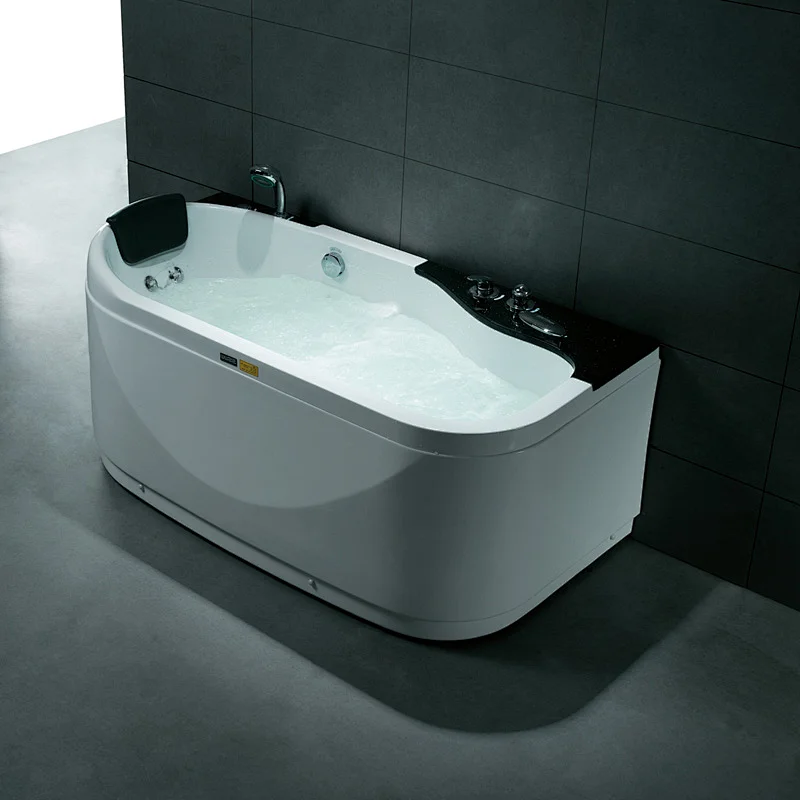

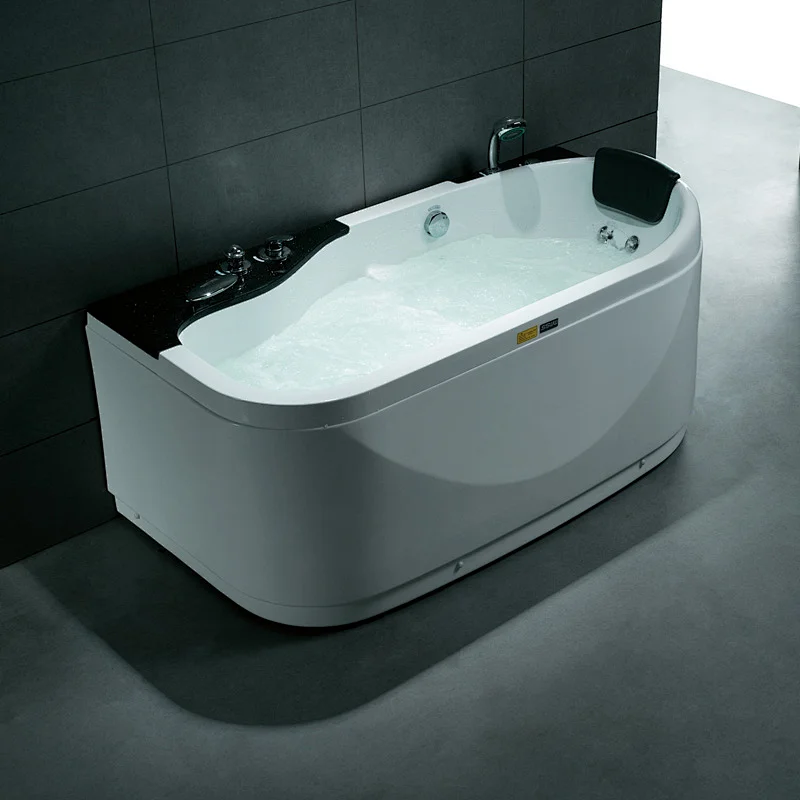

Model: A209
Basic Information
Type: Whirlpool massage bathtub
Dimension: 1750(L) ×850(W) ×705(H) mm
Color: White
Skirt-type: Three-side & single-skirt
Control panel: BH608F on & off touch panel
Seating persons: 1
Technical Parameters
Water capacity:138L
Certificates: CE, EN12764, EN60335 , ISO9001, etc.
N.W / G.W:84kgs / 124kgs
20 GP / 40GP / 40HQ loading capacity:28sets / 34sets / 44sets
Packing way: Poly bag + carton + wooden board
Packing dimension / Total volume:1860(L)×960(W)×775(H)mm / 1.39CBM

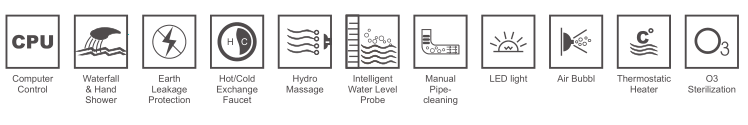

Features


Drawing:
